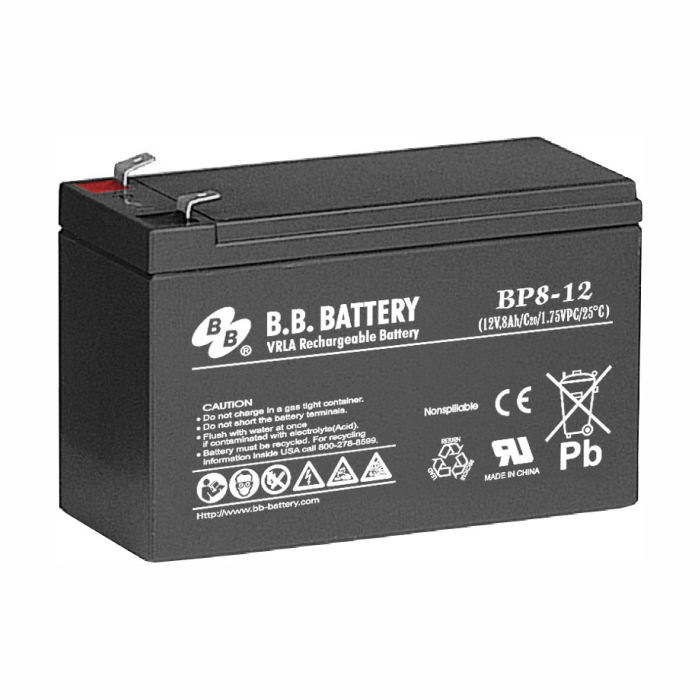

BP8-12 bb battery12V8AHSuitable forUninterruptible power supplies,Security and safety systems,Emergency lighting and video surveillance systems,Access control and management systems,Medical equipment
The B.B. Battery VRLA BP8-12 series is specifically designed for long-term stable power supply, featuring impact-resistant ABS casing and innovative pressure relief valve technology for dual safety protection against fire and explosion. This 12V maintenance-free battery supports vertical/horizontal multi-directional installation, making it ideal for space-constrained security systems, medical equipment, and emergency lighting scenarios. Built-in low self-discharge technology ensures less than 3% monthly power loss during idle periods. With an 8Ah capacity at 20-hour rate and a lightweight 2.65kg design, it can be flexibly deployed in access control systems, fire alarm panels, and other devices, equipped with standard T2 terminals for quick wiring.Certified by Eurobat for longevity, it delivers stable operation for 8-10 years in backup power scenarios exceeding 30 minutes.
Buy Now- WeChat：13775032303
- Email：powercube@foxmail.com
Product details
As an industrial-grade backup power solution, the BP8-12 series demonstrates exceptional performance in extreme environments. Its positive and negative plates utilize a special paste-coating process combined with sealed terminal design to effectively eliminate electrolyte leakage risks. The compact 151×65×94mm dimensions fit standard cabinet installations, while its 5.84-lb weight significantly reduces transportation costs. Certified for multiple discharge rates (C2/C5/C8), its stable 6.8Ah@5-hour rate output meets demanding power requirements for oilfield monitoring equipment and off-grid solar systems.The unique gas recombination technology achieves true maintenance-free operation, combined with a wide operating temperature range of -15°C to 50°C, proven reliable in 3000+ hotel, mining, and smart building scenarios. The built-in shock-resistant structure passes 3G vibration tests, making it particularly suitable for dynamic environments like vehicle-mounted medical equipment and mobile base stations, with standard T1/T2 terminal options to meet compatibility needs of different power distribution systems.Product Features
- Maintenance Free ( topping up not needed )
- Non - spillable ( no free electrolyte )
- Low Self Discharge, less than 3% per month
- both Vertical & Horizontal installations
- integrated Flame Arrestor at each cell
- Carry handles for easy installation
- Flame-arrestor is installed to ensure safety
Application Scenarios
- Uninterruptible power supplies
- Security and safety systems
- Emergency lighting and video surveillance systems
- Access control and management systems
- Medical equipment
- Telecommunication facilities
- Alternative energy sources
- Electrical supply network and power industry
- Street lighting and traffic lights
- Data processing centres
Product parameters
- ModelBP8-12
- Voltage12 V
- Nominal Capacity (Ah) 20-hour rate8
- Nominal Capacity (Ah) 10-hour rate7.6
- Nominal Capacity (Ah) 5-hour rate6.8
- Weight (kg)2.65
- Weight (lb)5.84
- Standard Terminal TypeT2
- Standard Terminal Position5
- Optional Terminal TypeT1
- Optional Terminal Position-
- Dimensions Length (mm)151
- Dimensions Length (in)5.94
- Dimensions Width (mm)65
- Dimensions Width (in)2.56
- Dimensions Height (mm)94
- Dimensions Height (in)3.7
- Dimensions Total Height (mm)100
- Dimensions Total Height (in)3.94
