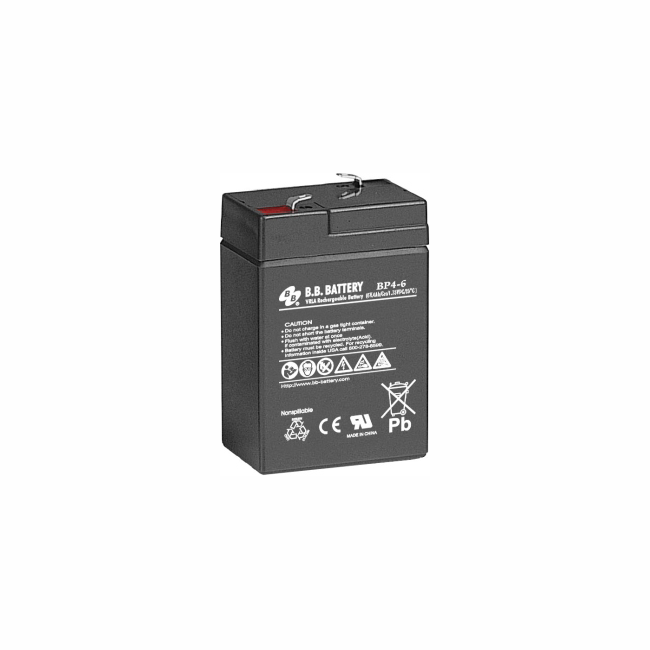

BP4-6 bb battery6V4AHSuitable forUninterruptible power supplies,Security and safety systems,Emergency lighting and video surveillance systems,Access control and management systems,Medical equipment
B.B. Battery BP4-6BP series VRLA sealed lead-acid batteries cover a capacity range of 1.0-230Ah with 4V/6V/12V voltage specifications, specifically designed for long-cycle backup power needs. Featuring impact-resistant ABS plastic casing and dual-sealed terminal structure, they ensure zero leakage whether installed horizontally or vertically. The unique pressure relief valve uses non-combustible materials to effectively prevent fire and explosion risks. Core advantages include an 8-10 year ultra-long service life and a self-discharge rate as low as 3% per month. With flexible T1/T2 terminal options to adapt to various device interfaces, they're particularly suitable for scenarios requiring over 30 minutes of power backup.This series has been successfully applied in hospital life-support equipment, intelligent security systems, emergency lighting networks, and industrial-grade UPS devices. With a lightweight design of 0.85kg and compact dimensions of 70×47×101mm, it provides reliable po
Buy Now- WeChat：13775032303
- Email：powercube@foxmail.com
Product details
As a benchmark product for industrial backup power, the B.B. Battery BP4-6 series has passed the Eurobat long-life certification in Europe, maintaining stable output even in extreme temperature conditions. Its maintenance-free design eliminates the need for electrolyte replenishment, and the integrated cover structure with a six-hole liquid injection process achieves complete leak-proof sealing, making it particularly suitable for space-constrained medical monitors and underground parking alarm systems. Technical parameters show this model provides a benchmark capacity of 4Ah at a 20-hour rate, with a portable weight of only 1.87 lbs, making it an ideal choice for mobile power fleets. Its 3.98-inch height specification perfectly fits standard rack installations.In remote areas with unstable power grids, this battery pack can be expanded in parallel into a high-capacity energy storage system, achieving 72-hour continuous power supply when paired with solar inverters. The proprietary plate curing process extends cycle life to over 1,200 cycles, while the built-in short-circuit protection mechanism effectively prevents surge current impacts, providing dual safety guarantees for financial data centers and smart building access control systems.Product Features
- Maintenance Free ( topping up not needed )
- Non - spillable ( no free electrolyte )
- Low Self Discharge, less than 3% per month
- both Vertical & Horizontal installations
- integrated Flame Arrestor at each cell
- Carry handles for easy installation
- Flame-arrestor is installed to ensure safety
Application Scenarios
- Uninterruptible power supplies
- Security and safety systems
- Emergency lighting and video surveillance systems
- Access control and management systems
- Medical equipment
- Telecommunication facilities
- Alternative energy sources
- Electrical supply network and power industry
- Street lighting and traffic lights
- Data processing centres
Product parameters
- ModelBP4-6
- Voltage6 V
- Nominal Capacity (Ah) 20-hour rate4
- Nominal Capacity (Ah) 10-hour rate3.8
- Nominal Capacity (Ah) 5-hour rate3.4
- Weight (kg)0.85
- Weight (lb)1.87
- Standard Terminal TypeT1
- Standard Terminal Position1
- Optional Terminal TypeT2
- Optional Terminal Position-
- Dimensions Length (mm)70
- Dimensions Length (in)2.76
- Dimensions Width (mm)47
- Dimensions Width (in)1.85
- Dimensions Height (mm)101
- Dimensions Height (in)3.98
- Dimensions Total Height (mm)106
- Dimensions Total Height (in)4.17
