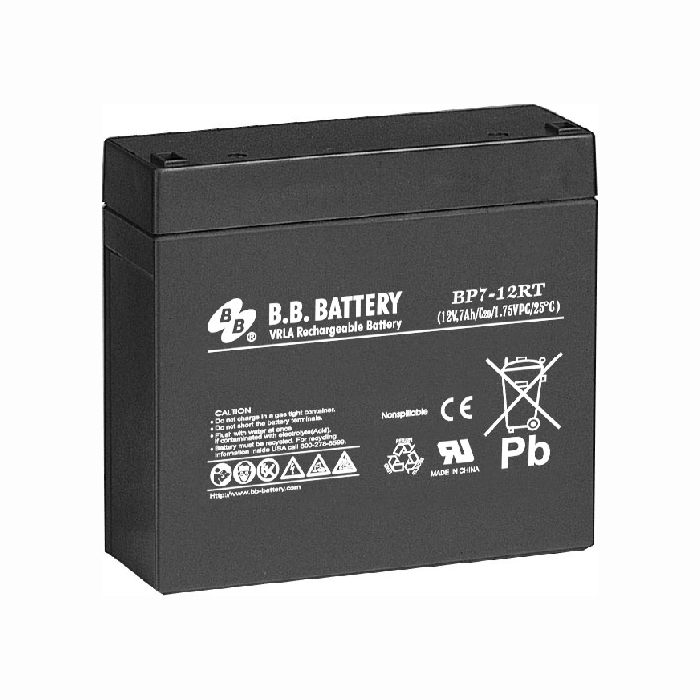

BP7-12RT bb battery12V7AHSuitable forUninterruptible power supplies,Security and safety systems,Emergency lighting and video surveillance systems,Access control and management systems,Medical equipmen
The B.B. Battery BP7-12RT valve-regulated lead-acid battery is specifically designed for uninterruptible power supplies and security systems. It features an impact-resistant ABS casing and dual-sealing technology, delivering stable power support with 12V voltage and 7Ah capacity (20-hour rate). The maintenance-free design eliminates the need for electrolyte replenishment, while the leak-proof structure ensures safe use in sensitive scenarios such as medical equipment and emergency lighting. Its compact dimensions (140mm×48mm×126mm) and lightweight design of 5.29 pounds allow for vertical or horizontal installation in confined spaces like cabinets and monitoring boxes.With a self-discharge rate of less than 3% per month, the battery maintains long-term power reserve in standby mode. The accompanying pressure relief valve uses flame-retardant materials and is Eurobat-certified, achieving an ultra-long service life of 8-10 years. It meets the 24/7 power supply demands of industrial enviro
Buy Now
Product details
This 12V VRLA battery delivers precise 7Ah discharge performance at a 20-hour rate, providing over 30 minutes of backup power for remote monitoring devices and electronic doorbells. The positive and negative plates utilize a special paste coating process, combined with RT standard terminals to ensure low-resistance connections. Its high-rate discharge capability of 5.95Ah (5-hour rate) meets instantaneous power demands such as electric vehicle charging stations. The casing has passed IP55 protection level tests and operates stably in environments ranging from -15°C to 50°C. The unique six-hole liquid injection structure, paired with an automatic pressure relief valve, effectively prevents explosion risks caused by overcharging.The lightweight 2.4kg body and ultra-thin 1.89-inch width make it particularly suitable for embedding in smart home control boxes or portable medical devices. With C2-C100 multi-spec capacity configurations, it can serve as the core energy storage unit for hotel emergency lighting systems or be connected in series to form a 48V system for powering communication base stations. Standard anti-corrosion copper terminals and optional 16mm terminal positions ensure compatibility with mainstream UPS devices for quick installation. With over 1,200 charge-discharge cycles, it extends service life by 3 times compared to ordinary batteries in the smart security field.Product Features
- Maintenance Free ( topping up not needed )
- Non - spillable ( no free electrolyte )
- Low Self Discharge, less than 3% per month
- both Vertical & Horizontal installations
- integrated Flame Arrestor at each cell
- Carry handles for easy installation
- Flame-arrestor is installed to ensure safety
Application Scenarios
- Uninterruptible power supplies
- Security and safety systems
- Emergency lighting and video surveillance systems
- Access control and management systems
- Medical equipment
- Telecommunication facilities
- Alternative energy sources
- Electrical supply network and power industry
- Street lighting and traffic lights
- Data processing centres
Product parameters
- ModelBP7-12RT
- Voltage12 V
- Nominal Capacity (Ah) 20-hour rate7
- Nominal Capacity (Ah) 10-hour rate6.65
- Nominal Capacity (Ah) 5-hour rate5.95
- Weight (kg)2.4
- Weight (lb)5.29
- Standard Terminal TypeRT
- Standard Terminal Position12
- Optional Terminal Type-
- Optional Terminal Position16
- Dimensions Length (mm)140
- Dimensions Length (in)5.51
- Dimensions Width (mm)48
- Dimensions Width (in)1.89
- Dimensions Height (mm)126
- Dimensions Height (in)4.96
- Dimensions Total Height (mm)128
- Dimensions Total Height (in)5.04
