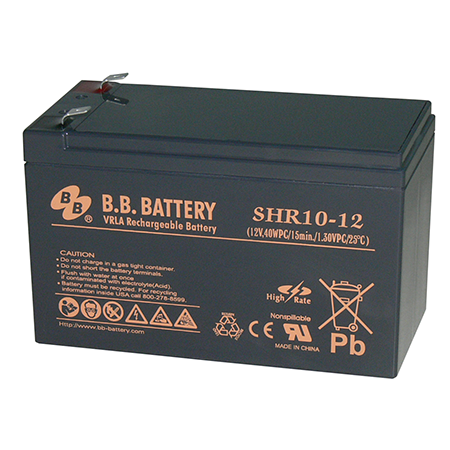

SHR10-12 bb battery12V40WSuitable forUninterruptible power supplies,Medical equipment,Emergency lighting and video surveillance systems,Access control and management systems,Telecommunication faciliti
The B.B. Battery SHR10-12SHR series VRLA batteries feature a 12V integrated design, specifically engineered for high-power demand scenarios. These maintenance-free sealed batteries utilize impact-resistant ABS material casings as their core, combined with top-mounted terminals and a leak-proof structure with no free acid, allowing flexible horizontal or vertical installation (inverted installation prohibited), making them particularly suitable for space-constrained emergency power supply scenarios. With 99% gas recombination efficiency achieved through absorbed glass mat technology and pressure relief valves made of flame-retardant materials, they effectively eliminate explosion risks, providing safety assurance for critical applications such as medical equipment, security systems, and data center UPS.In 15-minute short-duration discharge mode, a single unit can deliver up to 576W of power, with a 50% increase in power density compared to similar products, meeting emergency power backu
Buy Now- WeChat：13775032303
- Email：powercube@foxmail.com
Product details
As a representative of the third-generation VRLA batteries, the SHR10-12SHR series elevates safety and performance to new heights. Its innovative grid alloy formulation ensures stable output across a wide temperature range of -15°C to 50°C, while the specially designed T2 standard terminals can handle 200A transient currents. Combined with the top anti-corrosion coating, it maintains excellent conductivity even in humid marine environments. Test data shows that under 2-minute rapid discharge conditions, each unit can deliver 1.3V/cell of sustained power, making it particularly suitable for millisecond-level response requirements during sudden power outages in access control systems.The SMART-AGM (Smart Electrolyte Retention Technology) allows the battery to function normally even when tilted at 45°, a breakthrough design enabling installation in vibrating environments such as ships and mobile medical vehicles. To meet the specific demands of modern security systems, the battery features a built-in smart monitoring module that provides real-time feedback on remaining capacity, communicating with the host via LED indicators or RS485 interfaces. Notably, its cycle performance—achieving up to 800 cycles at 80% depth of discharge—combined with the patented pulse repair charging mode, significantly extends its service life.From children's electric toy cars to industrial-grade UPS, this UL-certified energy solution is setting new benchmarks for power reliability across more than 20 industries worldwide.Product Features
- Maintenance free(no water topping-up required)
- No free acid(Non-spillable battery)
- The battery is designed for high rate usage
- Can be used in any orientation(excluding used inverted)
- Absorbent Glass Mat technology for efficient gas recombination
- The power density at 2 min-15min discharging rate is 30% higher than BP series
- Flame-arrestor is installed to ensure safety
Application Scenarios
- Uninterruptible power supplies
- Medical equipment
- Emergency lighting and video surveillance systems
- Access control and management systems
- Telecommunication facilities
- Data processing centres
- Alternative energy sources
- Electrical supply network and power industry
- Alternative energy sources
- Electrical supply network and power industry
Product parameters
- ModelSHR10-12
- Voltage12 V
- Nominal capacity 15 minutes W/cell40
- Weight kg2.7
- Weight lbs5.95
- Standard terminal typeT2
- Standard terminal position-
- Optional terminal typeT1 B0
- Optional terminal position-
- Length mm151
- Length inches5.94
- Width mm65
- Width inches2.56
- Height mm94
- Height inches3.7
- Overall height mm100
- Overall height inches3.94
