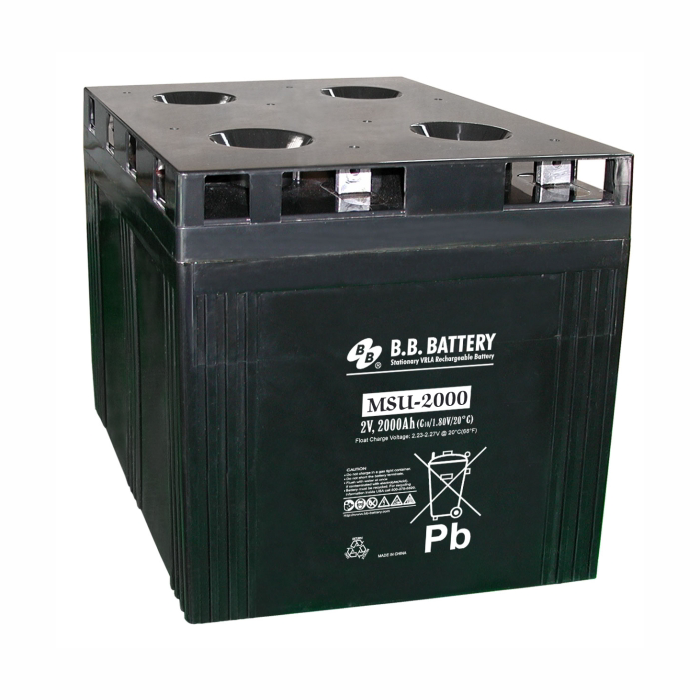

MSU-2000 bb battery2V2000AH

Product details

As a flagship product of B.B. Battery, the MSU-2000MSU series perfectly combines industrial-grade durability with intelligent power supply solutions. Its compact 400×350×341mm body encapsulates a 117kg high-strength structure, with 2V voltage output and 2000Ah capacity (based on C10 standard) capable of meeting the continuous operation needs of large equipment rooms. The positive and negative plates use special active material formulations, maintaining 98% charging efficiency even in extreme environments ranging from -40°C to 60°C. Paired with a 13.43-inch total height explosion-proof design, it is particularly suitable for deployment in space-constrained substations or underground data centers.The battery pack's B6 standard terminals support rapid parallel expansion, enabling a single unit to provide 72-hour backup power for 5G base stations or be combined into megawatt-scale energy storage arrays for wind farm output stabilization. In the medical field, its non-volatile electrolyte characteristic ensures 24/7 uninterrupted operation of ICU equipment, while its fire-resistant material construction, certified by UL, makes it the preferred power source for oil platform safety systems. The core patented gel electrolyte technology allows the MSU-2000MSU to deliver exceptional performance in frequent charge-discharge scenarios, maintaining a 15-year design lifespan even with daily deep discharges.Test data shows that after 2000 cycles in solar energy storage systems, the capacity retention rate exceeds 85%, far surpassing industry averages. The innovative grid casting process reduces internal resistance to 0.12mΩ, and combined with the optimized 341mm height design, allows vertical triple-stacking in 19-inch standard racks, saving 40% of equipment room space. From round-the-clock power supply for smart city video surveillance systems to buffer storage for EV charging stations, this IEC60896-certified battery is currently safeguarding power for over 3000+ critical infrastructures worldwide.

Product Features

Sealed structure, no electrolyte leakage or spill
High performance alloy to secure corrosion-proof feature
Unique electrolyte system achieves maximum service life
Low self-discharge rate, lower than 3% capacity loss per month
Special paste formula promotes the good charging acceptance
Electrolyte with gel technology
Absorbent Glass Mat technology for efficient gas recombination

Application Scenarios

Uninterruptible power supplies
Security and safety systems
Emergency lighting and video surveillance systems
Access control and management systems
Medical equipment
Lawnmowers
Golf cars
Telecommunication facilities
Alternative energy sources
Electrical supply network and power industry

Product parameters

ModelMSU-2000
Voltage2 V
Nominal capacity (Ah) 10-hour rate2000
Weight kg117
Weight lbs257.9
Standard terminal typeB6
Standard terminal position-
Optional terminal typeI3
Optional terminal position-
Length mm400
Length inches15.75
Width mm350
Width inches13.78
Height mm341
Height inches13.43
Overall height mm369
Overall height inches14.53
