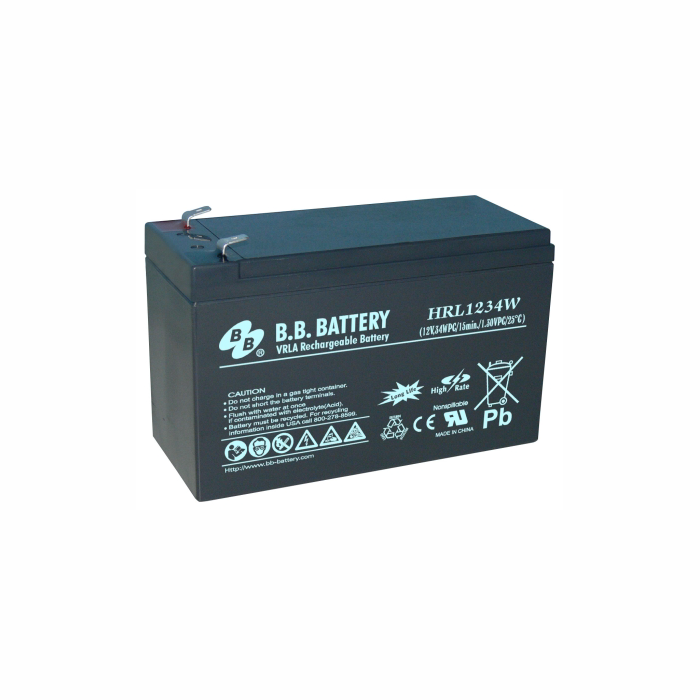

HRL1234W bb battery12V7AHSuitable forUninterruptible power supplies,Medical equipment,Emergency lighting and video surveillance systems,Access control and management systems,Telecommunication faciliti
The HRL1234W maintenance-free VRLA battery features an impact-resistant ABS casing and fully sealed structural design, specifically tailored for medium-to-low power uninterruptible power supply systems. This 12V battery supports a wide power output range of 132-5205W, capable of releasing 30% more instantaneous power than similar products within 15 minutes, providing reliable power support for UPS systems, data centers, and medical equipment. The innovative pressure relief valve uses fire-resistant materials combined with absorbent glass mat separator technology, achieving 99% gas recombination efficiency and ensuring zero leakage risk during operation.
Buy Now- WeChat：13775032303
- Email：powercube@foxmail.com
Product details
The B.B. Battery HRL series redefines power storage standards with a 12-year ultra-long lifespan. Its unique multi-directional installation design allows vertical or horizontal placement, adapting to complex scenarios such as server room racks and security equipment cabinets. The battery features high-density lead paste plates, maintaining a stable capacity of 5.5-215AH under different discharge rates from C2 to C100, and can continuously supply emergency power for 60 minutes. With a compact size of 151x65x94mm and a lightweight design of 5.73 pounds, it is particularly suitable for mobile applications like vehicle-mounted monitoring and solar energy storage systems. From hospital life-support equipment to wind power storage arrays, the HRL1234W demonstrates exceptional environmental adaptability.Its wide-temperature operation characteristics combined with an explosion-proof structure make it suitable for extreme environments such as oil and gas fields and outdoor base stations. The top T2 standard terminals support quick wiring, and redundant power system configurations can be expanded via T1 terminals to meet customized power needs for smart building access control systems and industrial automation equipment. Eurobat-certified quality ensures each battery retains 80% of its initial capacity after 5000 cycles.Product Features
- Maintenance free(no water topping-up required)
- No free acid(Non-spillable battery)
- The battery is designed for high rate usage
- Can be used in any orientation(excluding used inverted)
- Absorbent Glass Mat technology for efficient gas recombination
- The power density at 5 min-15min discharging rate is 30% higher than BP series
- Flame-arrestor is installed to ensure safety
Application Scenarios
- Uninterruptible power supplies
- Medical equipment
- Emergency lighting and video surveillance systems
- Access control and management systems
- Telecommunication facilities
- Data processing centres
- Alternative energy sources
- Electrical supply network and power industry
- Wheelchairs
- Floor cleaning equipment
Product parameters
- ModelHRL1234W
- Voltage12 V
- 10-hour Ah7
- Weight kg2.6
- Weight lbs5.73
- Standard terminal typeT2
- Standard terminal position-
- Optional terminal typeT1
- Optional terminal position-
- Length mm151
- Length inches5.94
- Width mm65
- Width inches2.56
- Height mm94
- Height inches3.7
- Thickness mm100
- Thickness inches3.94
