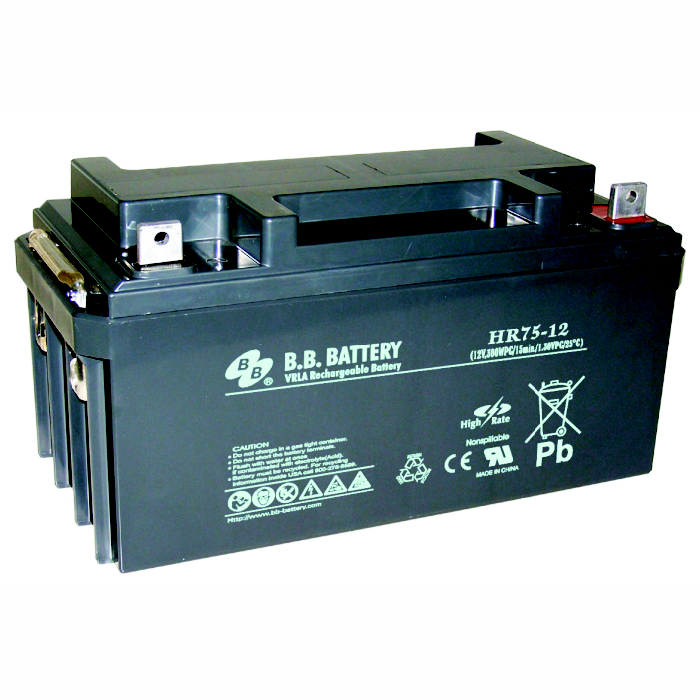

HR75-12 bb battery12V300WSuitable forElectro bikes and scooters,Golf cars,Telecommunication facilities,Alternative energy sources,Electrical supply network and power industry
The B.B. Battery HR75-12HR series of valve-regulated sealed lead-acid batteries are specifically designed for high-power rapid discharge scenarios. This versatile 6V/12V power source features impact-resistant ABS casing and integrated sealing design, with built-in explosion-proof safety valves ensuring zero leakage risk, capable of stable operation whether installed vertically or horizontally. Its core advantage lies in delivering up to 1800W per cell in 15-minute short-duration discharges, achieving 30% higher energy density than comparable products. Combined with absorbed glass mat separator technology, it achieves over 95% gas recombination efficiency, providing up to 60 minutes of uninterrupted protection for critical systems like fire alarms, medical equipment, and data centers during emergency power supply.The compact 24.75kg unit (dimensions 350x166x174mm) comes with B5 standard terminals, enabling rapid deployment across multiple scenarios.
Buy Now- WeChat：13775032303
- Email：powercube@foxmail.com
Product details
As an industrial grade emergency power solution, HR75-12HR maintains stable output in environments ranging from -15 ℃ to 50 ℃, 73Ah@C10 The continuous discharge capability meets the requirements of all-weather security monitoring. The six injection holes on the outer shell are matched with professional production technology to ensure uniform distribution of electrolyte. The special paste formula for the positive and negative electrode plates ensures a battery cycle life of up to 10 years. This series has passed the Eurobat long-life certification and is suitable for high demand scenarios such as oil and gas extraction base stations, telecommunications rooms, and new energy vehicle charging piles. Its discharge characteristic of 1.3V/kWh in 15 minutes can effectively respond to power grid flash crisis. The maintenance free design and free acid structure reduce equipment operation and maintenance costs by 60%, truly achieving reliable power supply guarantee of "ready to use".Product Features
- Maintenance free(no water topping-up required)
- No free acid(Non-spillable battery)
- The battery is designed for high rate usage
- Can be used in any orientation(excluding used inverted)
- Absorbent Glass Mat technology for efficient gas recombination
- The power density at 5 min-15min discharging rate is 30% higher than BP series
- Flame-arrestor is installed to ensure safety
Application Scenarios
- Electro bikes and scooters
- Golf cars
- Telecommunication facilities
- Alternative energy sources
- Electrical supply network and power industry
- Street lighting and traffic lights
- Electric vehicles
- Data processing centres
- Wheelchairs
- Floor cleaning equipment
Product parameters
- ModelHR75-12
- Voltage12 V
- 15-minute rated capacity W/cell300
- 10-hour rated capacity Ah73
- Weight kg24.75
- Weight lbs54.57
- Standard terminal typeB5
- Standard terminal position15
- Optional terminal typeI2
- Optional terminal position-
- Length mm350
- Length inches13.78
- Width mm166
- Width inches6.54
- Height mm174
- Height inches6.85
- Thickness mm174
- Thickness inches6.85
